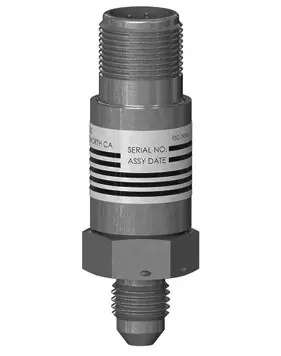

7G Series High Gage Pressure Switch, Diaphragm and Piston type Sensing Element
• Operating Range: 3 to 3000 PSIG
• Proof Pressures up to 4500 PSIG
• Weight: 2-3 oz. (approx.)
• All aluminum, lightweight, miniaturized gage pressure switch with high vibration and shock resistance for hydraulic, pneumatic or fuel systems.
• Option: Piston type sensing element for hydraulic applications.
The 7G Series is an all aluminum, lightweight, miniaturized gage pressure switch with high vibration and shock resistance. It is available in 8 to 3000 PSIG settings. The 7G is unique in that it can either use a diaphragm design for regular pressure settings or a piston design for high pressure applications. The approximate weight is 1.3 ounces. Applications include:
• Hydraulic systems
• Fuel systems
• Lubrication systems
• Engines
• Landing gear
• Environmental control systems
• Nitrogen generation systems
• Bleed air
• Fluid management
| Industry | |
|---|---|
| Instrumentation | |
| Certification Agency Approvals | |
| Pressure Type | |
| Media | |
| Increasing Pressure Range | |
| Decreasing Pressure Range | |
| Increasing Pressure Ranges Aerospace | 1 – 25 PSI, 100.01 – 600 PSI, 25.01 – 100 PSI, 600.01 – 3500 PSI |
| Decreasing Pressure Ranges Aerospace | 1 – 22 PSI, 22.01 – 85 PSI, 85.01 – 480 PSI, 480.01 – 2800 PSI |
| Maximum System Pressure | |
| Maximum Proof Pressure | |
| Ambient Temperature Range | |
| Port Connection Fitting Size | |
| Port Connection Material | |
| Port Connection Seal | |
| Custom Flange | |
| Diaphragm | Polyimide (H-Film), 316 Stainless Steel, Teflon Fiberglass, Rubber |
| O-ring | Buna N (Nitrile), Fluorosilicone, Silicone, Viton, Ethylene Propylene |
| Housing Enclosure | Aluminum, Stainless Steel, CRS (Cold Roll Steel) – Tin Plated |
| Electrical Environment | |
| Electrical Connector | |
| Electrical Switch Type | |
| Voltage Current Type | |
| Amperes Electrical Rating | Bifurcated – 0.003 to 0.100 A, Button – 0.1 to 0.5 A, Button – 0.5 to 5.0 A |
